Industrial IoT Connectivity
주요특징
가장 비용 효과가
높은 Serial to Ehternet 솔루션
설치가 쉬운 작은
사이즈
소켓 모드: TCP 서버, TCP 클라이언트,
UDP
여러 장치 서버를 구성하기 위한 사용하기 쉬운 Windows 유틸리티
네트워크 관리를 위한 SNMP
MIB-II
데이터 전송속도(Baudrate): 110
bps to 230.4 kbps
2 선 및 4 선 RS-485를 위한 특허 받은 ADDC® (자동 데이터 방향 제어) [NPort 5230 / 5232]
Ethernet
Interface
10/100BaseT(X) Ports
(RJ45 connector) |
1 |
Magnetic Isolation Protection |
1.5 kV (built-in) |
Ethernet
Software Features
Configuration Options |
Windows Utility, Serial Console, Telnet Console, Web
Console (HTTP/HTTPS) |
Management |
DHCP Client, IPv4, SNTP, SMTP, SNMPv1, DNS, HTTP,
ARP, BOOTP, UDP, TCP/IP, Telnet, ICMP |
Windows Real COM Drivers |
Windows 95/98/ME/NT/2000, Windows
XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64),
Windows Embedded CE 5.0/6.0, Windows XP Embedded |
Fixed TTY Drivers |
SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX
6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
Linux Real TTY Drivers |
Kernel version: 2.4.x, 2.6.x, 3.x, 4.x |
Android API |
Android 3.1.x and later |
MIB |
RFC1213, RFC1317 |
Serial
Interface
Connector |

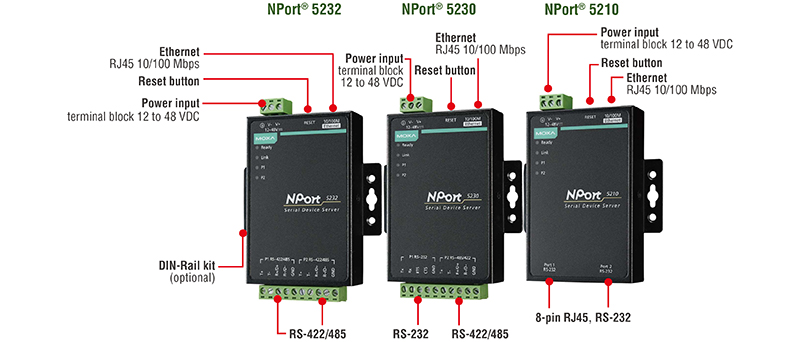

NPort 5210 Series: 8-pin RJ45 NPort 5230/5232 Series: Terminal block |
No. of Ports |
2 |
Serial Standards |
NPort 5210 Series: RS-232 NPort 5230 Series: RS-232/422/485 (The NPort 5230
Series supports RS-232 on one port, and RS-422/485 on the other.) Nport 5232 Series: RS-422/485 |
Operation Modes |
Disabled, Ethernet Modem, Pair Connection, Real COM,
Reverse Telnet, TCP Client, TCP Server, UDP |
Baudrate |
Supports standard baudrates (unit=bps): 110, 134,
150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600,
115200, 230400 |
Data Bits |
5, 6, 7, 8 |
Stop Bits |
1, 1.5, 2 |
Flow Control |
RTS/CTS (RS-232 only), DTR/DSR (RS-232 only),
XON/XOFF |
Parity |
None, Even, Odd, Space, Mark |
Pull High/Low Resistor for RS-485 |
1 kilo-ohm, 150 kilo-ohms |
Terminator for RS-485 |
120 ohms |
RS-485 Data Direction Control |
ADDC® (automatic data direction control) |
Isolation |
NPort 5232I Series: 2 kV |
Serial
Signals
RS-232 |
NPort 5210 Series: TxD, RxD, RTS, CTS, DTR, DSR,
DCD, GND NPort 5230 Series: TxD, RxD, RTS, CTS, GND |
RS-422 |
Tx+, Tx-, Rx+, Rx-, GND |
RS-485-4w |
Tx+, Tx-, Rx+, Rx-, GND |
RS-485-2w |
Data+, Data-, GND |
Power
Parameters
No. of Power Inputs |
1 |
Input Current |
NPort 5210/5230 Series: 325 mA @ 12 VDC NPort 5232/5232I Series: 280 mA @ 12 VDC, 365 mA @
12 VDC |
Input Voltage |
12 to 48 VDC |
Power Connector |
1 removable 3-contact terminal block(s) |
Reliability
Automatic Reboot Trigger |
Built-in WDT |
Alert Tools |
Built-in buzzer and RTC (real-time clock) |
Environmental
Limits
Operating Temperature |
Standard Models: 0 to 55°C |
Storage Temperature (package included) |
-40 to 75°C |
Ambient Relative Humidity |
5 to 95% (non-condensing) |
Declaration
Green Product |
RoHS, CRoHS, WEEE |
MTBF
Time |
NPort 5210 Series: 381,342 hrs NPort 5230 Series: 377,937 hrs NPort 5232 Series: 309,383 hrs |
Standards |
Telcordia (Bellcore) Standard TR/SR |
Warranty
Warranty Period |
5 years |
Details |
Contact us |
Standards
and Certifications
EMC |
EN 55032/24 |
EMI |
CISPR 32, FCC Part 15B Class A |
EMS |
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal:
3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11 DIPs |
Safety |
UL 60950-1 |
Medical |
NPort 5210 Series: EN 60601-1-2 Class B, EN 55011 |
Maritime |
NPort 5230/5232 Series: DNV |
NAME | Download | VERSION |
NPort 5000_RealCOM 모드 | https://www.yoisys.com/inc/download/form.php?id=108 | V1.0 |
NPort_TCP_Client_모드 | https://www.yoisys.com/inc/download/form.php?id=110 | V0.9 |
NPort_TCP_Server_모드 | https://www.yoisys.com/inc/download/form.php?id=111 | V0.9 |
